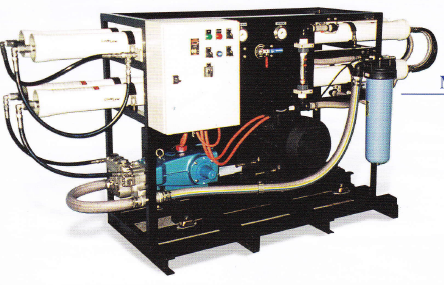

Model 30 TS
DOWNLOADS:
Description
- 30,000 litres/day
- Very High /volume
- Self Contained
- Suitable for:
Larger Vessels
Island Resorts
FEATURES :
Model | 2TS | 3.6TS | 5TS(a) | 7TSA | 10TS | 18TS | 30TS |
---|---|---|---|---|---|---|---|
Production Rate (Litres/24 Hour Day) |
1900 | 3600 | 5000 | 7000 | 10000 | 18000 | 30000 |
Electrical Power (KW) | 2.2 | 2.2 | 2.2 | 2.2 | 5.5 | 5.5 | 11 |
Length (mm) | 1200 | 1200 | 1200 | 1200 | 1500 | 2750 | 2750 |
Width (mm) | 400 | 400 | 400 | 500 | 650 | 650 | 800 |
Height (mm) | 470 | 470 | 470 | 500 | 650 | 650 | 800 |
Weight Approx Kgs | 52 | 55 | 58 | 70 | 270 | 300 | 550 |
Electrical Safety | Built In | Built In | Built In | Built In | Built In | Built In | Built In |
Mechanical Safety | Built In | Built In | Built In | Built In | Built In | Built In | Built In |
Low pressure cut out | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
Electric Motors | TEFC | TEFC | TEFC | TEFC | TEFC | TEFC | TEFC |
Frames Construction | Electropolished 316 SS | Powder-coated Aluminium |
