Description
  • 5 000 litres/day
  • Compact Unit
  • Low power Usage
  • 1.8kw motor
  • Single or 3 phase

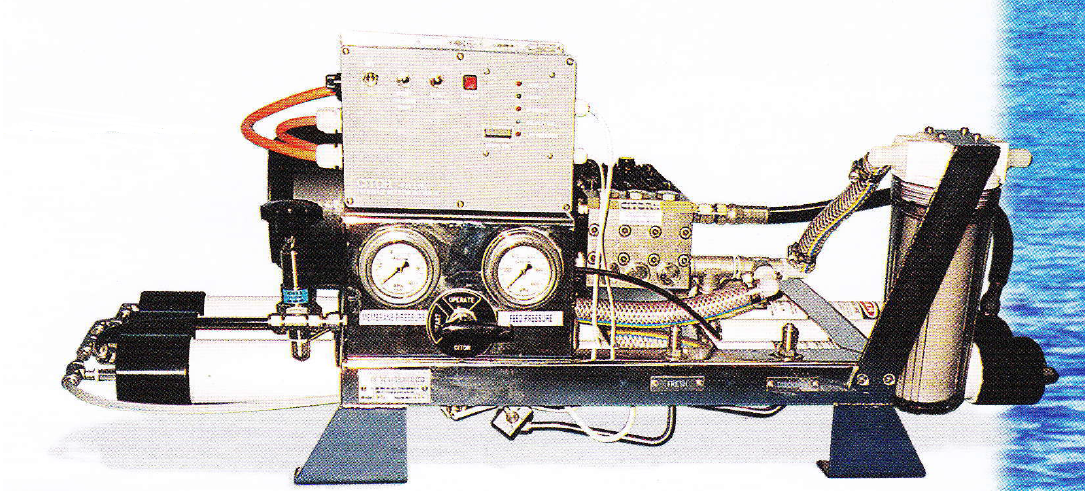

  • Model 5ts
FEATURES :
Model 2TS 3.6TS 5TS(a) 7TSA 10TS 18TS 30TS
Production Rate
(Litres/24 Hour Day)		 1900 3600 5000 7000 10000 18000 30000
Electrical Power (KW) 2.2 2.2 2.2 2.2 5.5 5.5 11
Length (mm) 1200 1200 1200 1200 1500 2750 2750
Width (mm) 400 400 400 500 650 650 800
Height (mm) 470 470 470 500 650 650 800
Weight Approx Kgs 52 55 58 70 270 300 550
Electrical Safety Built In Built In Built In Built In Built In Built In Built In
Mechanical Safety Built In Built In Built In Built In Built In Built In Built In
Low pressure cut out Yes Yes Yes Yes Yes Yes Yes
Electric Motors TEFC TEFC TEFC TEFC TEFC TEFC TEFC
Frames Construction Electropolished 316 SS Powder-coated Aluminium
